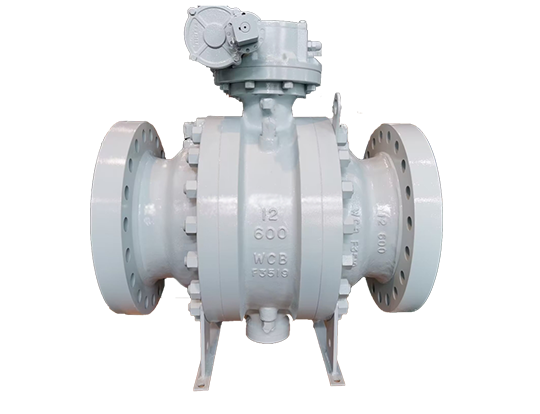

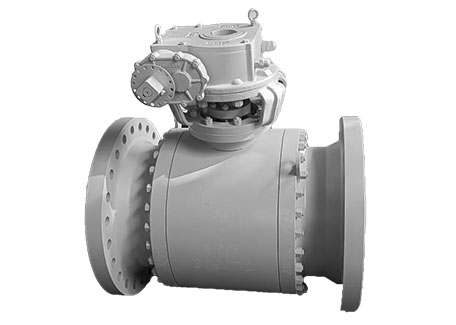

Princeps Pressura Trunnion Eques Ball Valve

LYV® est professio Sinarum qualitas High Pressura Trunnion Equestus Ball Valvae fabrica. Haec valvae industrialis specialiter destinatur ad condiciones laborantes summus pressura. Rigidam structuram pilae fixae in summo et fundo cum spiculis aureis adhibet, coniunctam cum certo certius altae obsignationis effectu. Itaque optima est electio fistularum clavium in industriis sicut petroleum et gas naturale, machinalis chemica, et stationes potentiae.

Mitte Inquisitionem

Product Introduction

LYV® Princeps Pressura Trunnion Ball Valve Equestus utitur robustiore stipite auriculae globum fixum designat, ut pila in suo situ etiam sub pressione pipeline alta maxime maneat. Hoc dat leves, humilis-torques aperiendi et claudendi et bidirectionales nullae-lacas obsignatio, fundamentaliter eliminato periculo lacus internorum. Hoc permittit DBB Trunnion Ball Valve impositus altas pressuras differentias et operationes crebras diu sustinere, signanter deminutio sumptibus sustentationis et periculi inopinati downtime.

Gratias ultra viginti annos experientiae fabricationis professionalis. Cum certa sua qualitate, haec High euismod Trunnion Ball Valve Elevata late in nucleo fistularum globalis olei et gasi diuturnae fistulae, clavis chemicae plantae, et magnae potentiae statio, etc., solida electio est ad salvam operationem industriae infrastructuram longi temporis servandam.

Specifications

Magnitudo dolor:

NPS 2"-48"; DN50-DN1000

Pressura nominal:

150LB-500LB; PN10-PN420

Temperatus dolor:

-196℃ ~ 825℃（ pendent ex consilio et materia.

Finis Contrahentes:

Flange; Butt-weld.

Corpus Materiae:

ASTM A216 WCB/WCC; ASTM A352 LCB/LCC; ASTM A351 CF8/CF8M/CF3/CF3M/CF8C; ASTM A890 4A/5A/6A;

ASTM A105; ASTM A182 F304/F316/F304L/F316L

Materiae pilae:

ASTM A105N+ENP/A105N+TCC; ASTM A182 F304/F316/F304L/F316L; ASTM A182 F347/F51/F53/F55

Materiae sedes:

PTFE/RPTFE/FPM/PEEK; 304/316+STL/INCONEL

Materiae caulis:

ASTM A182 F6A; ASTM A182 F304/F316/F304L/F316L; 17-4PH; ASTM A182 F51/F53/F55

Design & Manufacture Latin:

API 6D

Facie ad faciem Latin:

ASME B16.10/ EN558-1

Finis Connection Latin:

ASME B16.5/ ASME B16.25

Test & recognitione Latin:

API 598

Quid usus est Trunnion High Pressure Ball Valve Mounted?

Nostrum Cast Trunnion Ball Valve Equestre magnam facultatem ad altam pressionem sustinendam et certa signationem praebendam, maxime applicatur in sequentibus locis clavibus:

Petroleum et industria gas naturale:Lineae principales longi-distantiae tibiarum, limbi et exitus valvularum in stationibus, et sectiones pressurae altae sicut in limbo et exitus unitatum compressorum.

Industria chemica et petrochemical:Reactio instrumenti, summus pressio materiae rudis et producti vecturae pipelines, summus temperatus et summus pressurae processus medium imperium.

Potentia electrica industria:Potentia herbae feedwater boiler, vapor ratio et summus temperatus circulatio pipelines summus pressura.

Features

■ Hoc Flanged Trunnion Ball Valvae inenarrabile est ut pressionis pipelinearum altissima sustineat et ad pressionum aestimationes 150LB-250LB apta est.

■ Quantumcumque medium influat ab utraque parte valvae, aeque certa clausula obsignatio consequi potest, requisitis occurrens ad segregationem pipelinearum.

■ Etiam sub alta pressione Aureus operans valvae aperire vel claudere multo minus est quam valvae pilae fluitantis. Haec Industrialis Trunnion Ball Valvae inenarrabilis instrui potest actuatoribus manualibus, pneumaticis vel electricis.

■ Ignis repugnans structurae quae obtemperat API 607/API 6FA signa signa fundamentalia praebere potest in casu ignis accidentalis.

■ Optimized gerens consilium et sedes valvae humilitatis/contactus pilae modum significanter cyclum et servitium vitae valvae sustentationem extendunt.

API 6D certificatione

LYV® High Pressure Trunnion Mounted Ball Valve API 6D certificationem consecutus est, quae indicat suum consilium, materias et processus fabricandi cum maximis signis olei et gasi industriae internationalis plene parere. Haec certificatio spondet clavem valvae observantiam modo verificabili: lacus nulla attingens per pressionem pressionis et signationem bidirectionalem certae, ut omnes materias plene investigari et verificare possint pro sua salute in extrema condicione, sicut ignis resistentia et temperaturas humilis. Hoc facit nucleum delectu basis ad longum tempus tutandum et certa operatione energiae pipelines praestandum.

Trunnion Mounted Ball valvae

Praecipua externa et connectens dimensiones

Date		Revision							Repleti	Sedatus a	Publicare per
2024-April-01		Primum proventus							Frank	Lee	Frank

NPS	DN	RF	RTJ	NOS'	BB	PB*	A	B	C	D	Wt.(kg)
NPS	DN	FF			BB	PB*	A	B	C	D	Wt.(kg)
150LB
2	50	178	190	216	51	51	152	105	100	153	19
3	80	203	216	283	51	77	191	105	100	153	34
4	100	229	241	305	102	102	229	200	160	230	35
6	150	394	406	457	152	152	279	250	185	305	145
8	200	457	470	521	203	203	343	278	222	390	245
10	250	533	546	559	254	254	406	323	280	467	400
12	300	610	622	635	305	305	483	340	303	540	700
14	350	686	698	762	337	337	535	375	330	607	950
16	400	762	775	838	387	387	595	410	355	675	1210
18	450	864	876	914	438	438	635	440	390	753	1700
20	500	914	927	991	489	489	700	495	430	845	2000
22	550	991	-	1092	540	540	750	525	475	930	2500
24	600	1067	1079	1143	591	591	815	585	520	1010	3200
26	650	1143	-	1245	635	635	870	630	560	1070	4200
28	700	1244	-	1347	686	686	925	645	650	1140	5300
30	750	1295	-	1397	736	736	985	690	700	1220	6500
32	800	1371	-	1524	781	781	1060	740	745	1310	7700
34	850	1473	-	1626	832	832	1110	760	775	1380	8800
36	900	1524	-	1728	876	876	1170	810	805	1440	9900
40	1000	1753	-	1956	978	978	1290	895	900	1610	12700
42	1050	1855	-	2083	1022	1022	1345	950	935	1683	15000
48	1200	2134	-	2388	1168	1168	1510	1095	1070	1930	18000
56	1400	2489	-	2489	1384	1384	1735	1300	1250	2273	34120
300LB
2	50	216	232	216	51	51	165	105	100	153	24
3	80	283	298	283	77	77	210	155	125	187	43
4	100	305	321	305	102	102	254	200	160	230	89
6	150	403	419	457	152	152	318	250	203	305	170
8	200	502	517	521	203	203	381	278	232	390	270
10	250	568	584	559	254	254	445	333	29.8	477	460
12	300	648	664	635	305	305	520	360	333	540	750
14	350	762	778	762	337	337	585	395	350	630	1000
16	400	838	854	838	387	387	650	433	398	698	1430
18	450	914	930	914	438	438	710	460	410	770	1790
20	500	991	1010	991	489	489	775	505	470	855	2400
22	550	1092	1114	1092	540	540	840	530	485	940	2980
24	600	1143	1165	1143	591	591	915	590	550	1025	3550
26	650	1245	1270	1245	635	635	970	635	585	1085	4300
28	700	1346	1372	1346	686	686	1035	645	670	1150	5600
30	750	1397	1422	1397	736	736	1090	700	730	1240	6800
32	800	1524	1553	1524	781	781	1150	750	770	1320	8100
34	850	1626	1654	1626	832	832	1205	765	800	1393	9300
36	900	1727	1756	1727	876	876	1270	810	825	1450	10500
40	1000	1956	-	1956	978	978	1240	905	920	1620	13500
42	1050	2083	-	2083	1022	1022	1290	960	955	1690	16000
48	1200	2170	-	21740	1168	1168	1465	1100	1105	1943	20000
56	1400	2743	-	2743	1384	1384	1710	1300	1275	2280	38170
600LB
2	50	292	295	292	51	51	165	105	100	160	35
3	80	356	359	356	77	77	210	165	130	190	80
4	100	432	435	432	102	102	273	210	162	234	140
6	150	559	562	559	152	152	356	253	203	305	277
8	200	660	664	660	203	203	419	290	257	405	480
10	250	787	791	787	254	254	510	330	310	490	800
12	300	838	841	838	305	305	560	380	350	580	1120
14	350	889	892	889	337	337	605	395	360	630	1350
16	400	991	994	991	387	387	685	433	413	702	1860
18	450	1092	1095	1092	438	438	745	470	430	775	2400
20	500	1194	1200	1194	489	489	815	505	490	863	3100
22	550	1296	1305	1296	540	540	870	548	510	950	4000
24	600	1397	1406	1397	591	591	940	595	570	1030	5000
26	650	1148	1460	1448	635	635	1015	635	620	1093	6000
28	700	1549	1562	1549	686	686	1075	665	690	1170	7500
30	750	1651	1664	1651	736	736	1130	710	750	1255	9300
32	800	1778	1794	1778	781	781	1195	755	780	1327	11000
34	850	1930	1946	1930	832	832	1245	780	815	1405	1330
36	900	2083	2098	2083	876	876	1315	815	840	1465	15600
40	1000	2337	2337	2337	978	978	1320	915	940	1640	20800
42	1050	2437	2437	2437	1022	1022	1405	970	980	1720	23000
48	1200	2540	2540	2540	1168	1168	1595	1105	1120	1970	27000
56	1400	2949	2949	2949	1384	1384	1855	1300	1290	2305	47490
900LB
2	50	368	371	368	51	51	216	105	105	160	75
3	80	381	384	381	77	77	241	165	130	190	100
4	100	457	460	457	102	102	292	210	167	237	160
6	150	610	613	610	152	152	381	260	210	320	350
8	200	737	740	737	203	203	470	295	266	420	645
10	250	838	841	838	254	254	545	345	330	515	1000
12	300	965	968	965	305	305	610	390	380	605	1500
14	350	1029	1038	1029	324	324	640	400	370	640	1900
16	400	1130	1140	1130	375	375	705	440	435	715	2600
18	450	1219	1232	1219	425	425	785	482	500	800	3100
20	500	1321	1333	1321	475	473	855	530	500	900	4300
22	550	-	-	-	-	-	-	-	-	-	-
24	600	1549	1568	1549	571	571	1040	615	630	1060	7100
26	650	1651	1674	1651	619	619	1085	650	650	1120	9600
28	700	1753	1775	1753	667	667	1170	670	710	1230	12000
30	750	1880	1902	1880	714	714	1230	7252	780	1300	15000
32	800	2032	2054	2032	762	762	1315	785	810	1360	18000
34	850	2159	2188	2159	810	810	1395	805	850	1470	21000
36	900	2286	2315	2286	857	857	1460	845	900	1530	24000
1500LB
2	50	368	371	368	51	51	216	105	105	160	80
3	80	470	473	470	77	77	267	165	130	190	150
4	100	546	549	546	102	102	311	215	167	245	250
6	150	705	711	705	146	146	394	260	230	345	520
8	200	832	841	832	194	194	483	300	285	450	845
10	250	991	1000	991	241	241	585	365	350	555	1600
12	300	1130	1146	1130	289	289	675	420	423	710	2000
14	350	1257	1276	1257	317	317	750	440	430	770	2800
16	400	1384	1406	1384	362	362	825	480	500	850	3800
18	450	1537	1559	1537	407	407	916	550	600	980	5000
20	500	1664	1686	1664	457	457	985	620	650	1020	6500
22	550	-	-	-	-	-	-	-	-	-	-
24	600	2043	2071	2043	534	534	1170	700	720	1290	10000

Etiam schedula probata est a turma nostra fectum. Sed errata improvisa in input manuali non excluduntur. Haec scheda pro exsecutabili documento adhiberi non potuit. Ad subsidia technica, mitte nobis tua specifica per electronica. Artificium nostrum extractiones trahet secundum tuam specificationem.

Monemus te hanc paginam conserva in navigatro tuo in casu necessitatis in futuro. Amplius informationes placere contactus tosales@gntvalve.com
